Forks
FPF
FPF pallet forks
MODELS CAPACiTY WEIGHT A B C D bxh
kg kg mm mm mm mm mm
FPF 15 1500 132 1050 1280 1760 935 100×40
FPF 20 2000 180 1035 1230 1710 910 100×40
FPF 30 3000 225 1060 1130 1780 960 130×40
Watch the video bellow:
FPF 20 X
FPF 20 X pallet fork, with the possibility to mount suspension links and predefined holes for blades adjustment.
MODEL CAPACITY WEIGHT A B C D bxh
kg kg mm mm mm mm mm
FPF 20 X 2000 156 1035 1250 1730 910 100×40

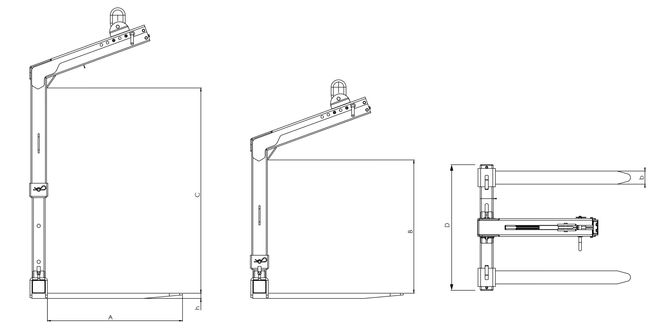

FPF 20 A
FPF A pallet fork, self-balancing
MODEL CAPACITY WEIGHT A B C D bxh
kg kg mm mm mm mm mm
FPF 20 A 2000 175 1035 1100 1650 950 100×40

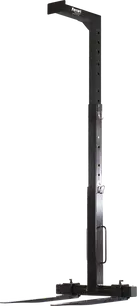

FPF 20 XE
FPF 20 XE pallet fork, height adjustable
Adjustment of width with holes
MODEL WEIGHT L W b x h
kg mm mm mm
FPF 20 XE 200 1020 975 100x40
Various heights means different maximum loads, please refer to table 2
Table 2:
A CAPACITY
mm kg
1300 2000
1300 - 2115 1300
2115 - 3025 700
Accessories for Forks
Suspension Links
The suspension links have been designed for all forks without a pre-existing hook.
These links can be easily positioned along the upper arm of the fork and are equipped with an anti-tilt system, ensuring that the attachment remains vertical even when at rest, preventing it from tilting.
They are available with either a ring for a hook or a bushing for a shaft rotator.
Available for models FPF 20 S – 20 X – 20 XE.
Watch the video bellow:
Technical Data can be revised without prior notice
