Baskets for 1 person
FAB 1
Single-person steel/aluminum personnel basket
Steel
Aluminum
MODELS L H W WEIGHT LOAD CAPACITY INSULATION MAX. NO. OPERATORS
mm mm mm kg kg kV no.
FAB 1 ST 855 1150 705 125 120 1 1
FAB 1 AL 855 1150 705 125 120 1 1
KIT FULLMATIC needed for norm EN 280
Watch the video bellow:
AGLY 1
Single-person aluminum personnel basket
MODEL L H W WEIGHT LOAD CAPACITY INSULATION MAX. NO. OPERATORS
mm mm mm kg kg kV no.
AGLY 1 860 1140 700 100 120 1 1
KIT FULLMATIC needed for norm EN 280
Baskets for 2 people
FAB 2
Two-person steel/aluminium personnel basket
Steel
Aluminum
MODELS L H W WEIGHT LOAD CAPACITY INSULATION MAX. NO. OPERATORS
mm mm mm kg kg kV no.
FAB 2 ST 1405 1150 705 150 200 1 2
FAB 2 AL 1405 1150 705 150 200 1 2
KIT FULLMATIC needed for norm EN 280

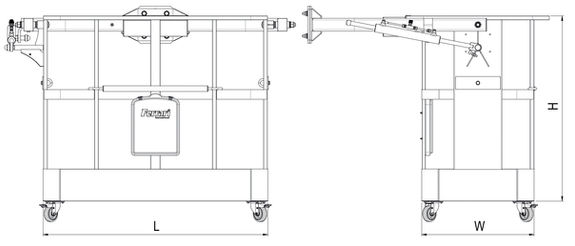

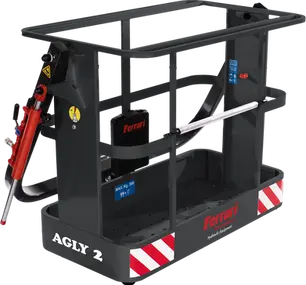

AGLY 2
Two-person steel personnel basket
MODEL L H W WEIGHT LOAD CAPACITY INSULATION MAX. NO. OPERATORS
mm mm mm kg kg kV no.
AGLY 2 1400 1150 700 140 200 1 2
KIT FULLMATIC needed for norm EN 280

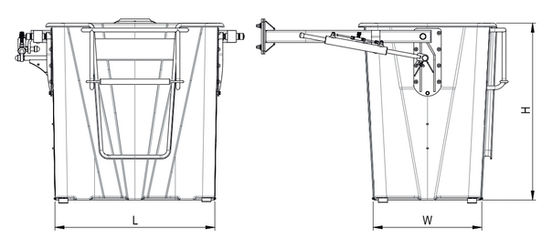

FAV 1080/2
Compact two-person fiberglass personnel basket
MODEL L H W WEIGHT LOAD CAPACITY INSULATION MAX. NO. OPERATORS
mm mm mm kg kg kV no.
FAV 1080/2 1050 1165 715 103 200 1 2
Watch the video bellow:
KIT FULLMATIC needed for norm EN 280
FAV 2
Two-person fiberglass personnel basket
MODEL L H W WEIGHT LOAD CAPACITY INSULATION MAX. NO. OPERATORS
mm mm mm kg kg kV no.
FAV 2 1480 1165 715 118 200 1 2
KIT FULLMATIC needed for norm EN 280

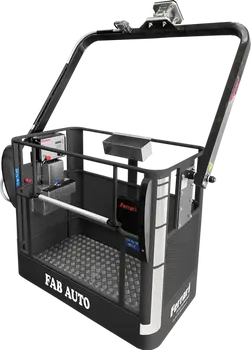

FAB AUTO
Self-balancing two-person steel personnel basket, suitable for under-bridge operations
The FAB AUTO model is a self-leveling basket with the possibility of working under bridges, an hydraulic actuator that allows 360º rotation of the arm (not continuous) and an electric card that balances its control.
This hydraulic actuator works with steel balls immersed in oil and has a safety lever installed to manually lock and unlock the basket arm.
MODEL L H W WEIGHT LOAD CAPACITY INSULATION MÁX. NO. OPERATORS
mm mm mm kg kg kV no.
FAB AUTO CE 1400 1150 700 155 250 1 2
Watch the video bellow:
Technical Data can be revised without prior notice
