Rotator Accessories
Suspension Links

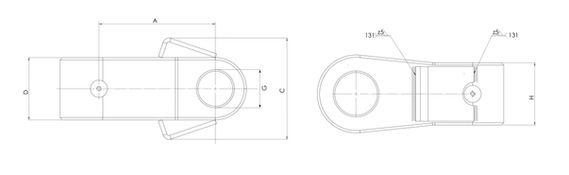

LINK F
MODELS A B C D E G H WEIGHT LOAD
mm mm mm mm mm mm mm kg kg
429025 77 110 30 25 55 71 185 8 5500
429030 77 110 30 30 55 71 185 8 5500
LINK M
MODELS A B C D G H WEIGHT LOAD
mm mm mm mm mm mm kg kg
491025 70 80 45 25 80 110 5 5500
491025 70 80 45 30 80 110 5 5500
UNIVERSAL LINK
MODEL PIVOT (D) WEIGHT LOAD
mm kg kg
490906 25 3 5500
FL 85/128
MODELS A B C D G H WEIGHT LOAD
mm mm mm mm mm mm kg kg
30
35
FL-85-128/110 110 40 128 80 40 80 10 12000
45
30
35
FL-85-128/150 150 40 130 80 40 80 11 12000
45
30
35
FL-85-128/240 240 40 130 80 40 80 12 12000
45
EPSILON VERSION LINK
UNIVERSAL VERSION LINK
Adapter Flange
Adapter flange for shaft rotators
MODELS A B HOLES WEIGHT ROTATORS
mm mm kg
FA50254F 50 25 4 7 FR 35
FA59304F 59 30 4 7 FR 50
FA593010F 59 30 10 10 FR 50
FA68304F 68 30 4 7 FR 55 - FR 85 SX
FA683010F 68 30 10 10 FR 55- FR 85 SX
FA69304F 69 30 4 7 FR 55 - FR 85 SX
FA693010F 69 30 10 10 FR 55- FR 85 SX
FA783510F 78 35 10 12 FR 128 SX
Technical Data can be revised without prior notice
